[8월 20일] Log Server

Rsyslog -> DB -> 분석 및 시각화(ELK Stack, Nagios, LogAnalyzer, Wazuh:siem, PMM:db monitering)

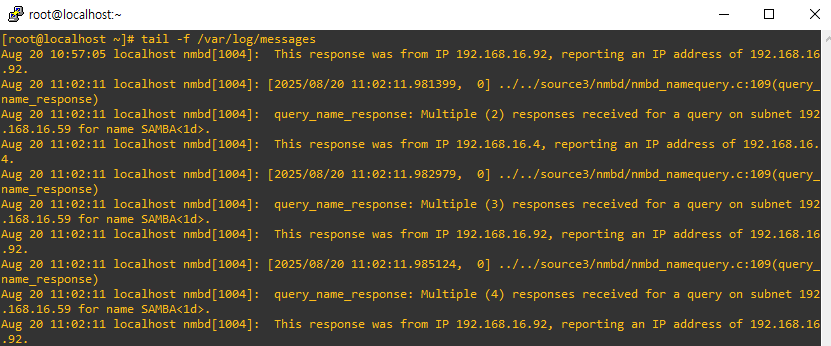

[root@localhost ~]# tail -f /var/log/messages



적제된 log를 DB에 저장

sql을 이용하여 원하는 log를 검색가능





@server 192.168.16.59

@client 192.168.16.98



[root@localhost ~]# dnf install -y rsyslog rsyslog-doc

* 기본적으로 설치되어있고 실행중



@server
[root@localhost ~]# vi /etc/rsyslog.conf

34.ModLoad imudp imtcp 추가





[root@localhost ~]# firewall-cmd --permanent --add-port=514/tcp success
[root@localhost ~]# firewall-cmd --permanent --add-port=514/udp success

[root@localhost ~]# firewall-cmd --reload
[root@localhost ~]# systemctl restart rsyslog


[root@localhost ~]# dnf install -y lsof net-tools
[root@localhost ~]# lsof -i tcp:514
[root@localhost ~]# netstat -natpl | grep 514







@client
[root@localhost ~]# vi /etc/rsyslog.conf

83. server ip 추가

[root@localhost ~]# systemctl restart rsyslog

rsyslog.conf 파일 server ip 추가

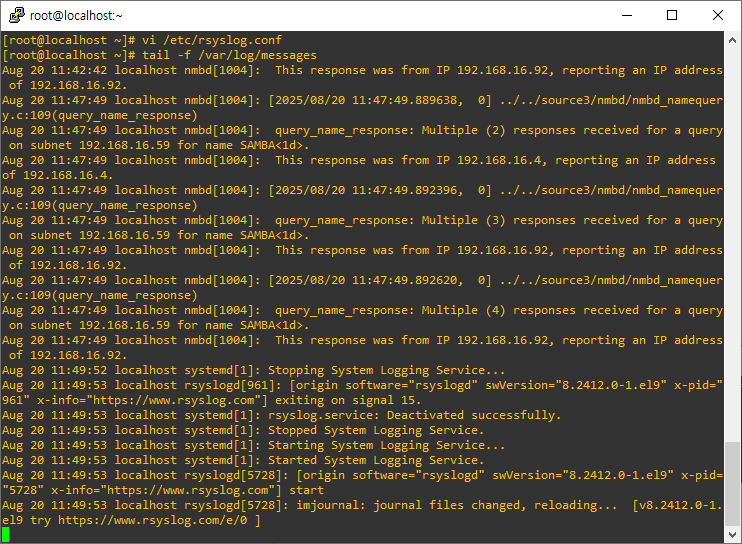

server의 tail -f /var/log/messages











[root@localhost ~]# dnf install -y mariadb-server
[root@localhost ~]# dnf install -y rsyslog-mysql
[root@localhost ~]# systemctl enable --now mariadb
[root@localhost ~]# mysql-secure_installation
[root@localhost ~]# cat /usr/share/doc/rsyslog/mysql-createDB.sql





[root@localhost ~]# mysql -u root -p < /usr/share/doc/rsyslog/mysql-createDB.sql
Enter password:

< : 리다이렉션 기호 : db에 접속하지 않고도 리다이렉션을 이용하여



MariaDB [(none)]> grant all privileges on Syslog.* to 'rsyslog'@'localhost' identified by 'rsyslog';
MariaDB [(none)]> flush privileges;

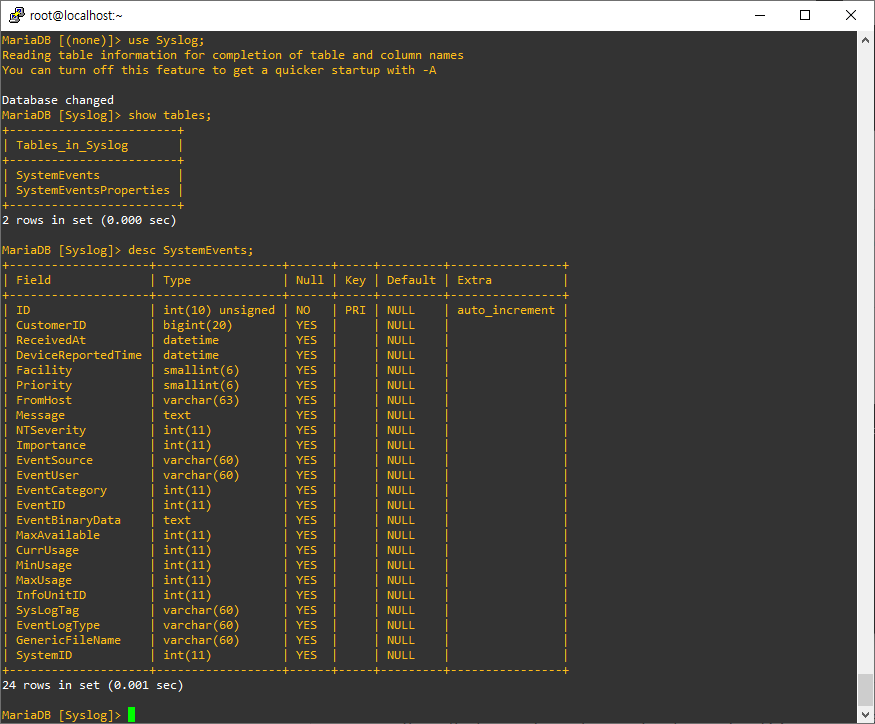

MariaDB [(none)]> use Syslog;
MariaDB [(none)]> desc SystemEvents;
MariaDB [(none)]> quit





[root@localhost ~]# vi /etc/rsyslog.conf

39. ModLoad ommysql 추가





[root@localhost ~]# firewall-cmd --permanent --add-port=3306/tcp

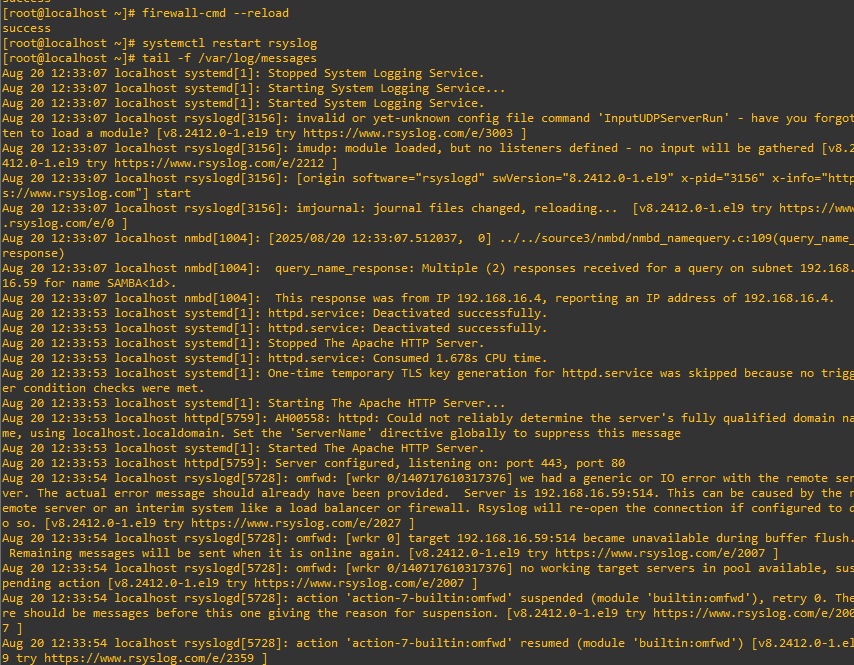

[root@localhost ~]# firewall-cmd --reload
[root@localhost ~]# systemctl restart rsyslog
[root@localhost ~]# tail -f /var/log/messages

@client 에서 systemctl restart httpd 실행 시 log 확인





@db
[root@localhost ~]# mysql -u root -p

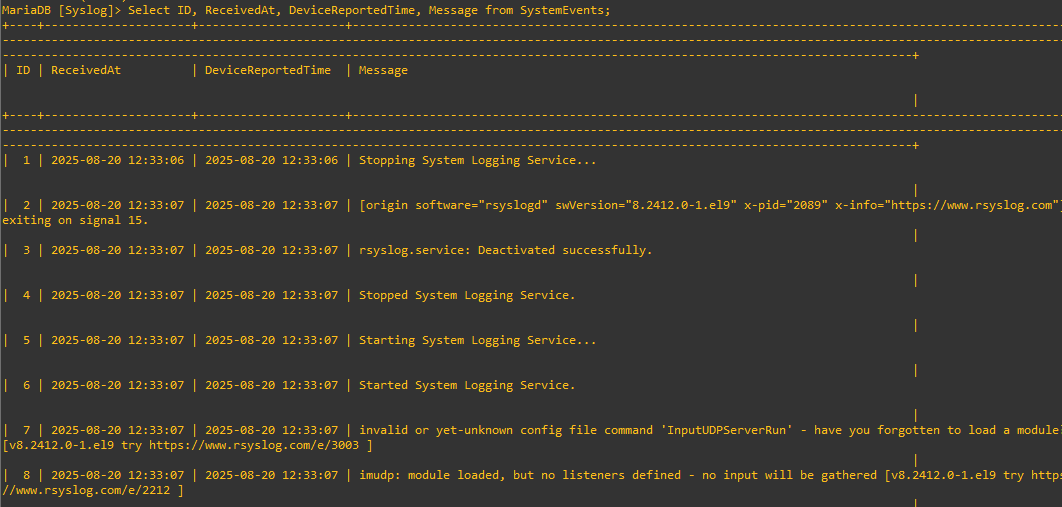

MariaDB [Syslog]> Select ID, ReceivedAt, DeviceReportedTime, Message from SystemEvents;







우선 client의 이름변경

@client: localhost->logclient 이름변경
[root@localhost ~]# hostname
localhost.localdomain
[root@localhost ~]# hostnamectl set-hostname logclient

@server: localhost->logserver 이름변경

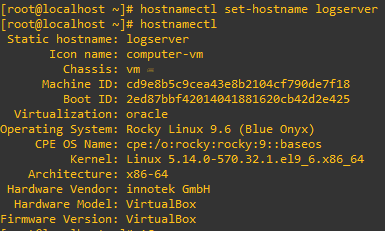

[root@localhost ~]# hostnamectl set-hostname logserver
[root@localhost ~]# hostnamectl





Web에 DB연결

LogAnalyzer 설치

https://loganalyzer.adiscon.com/

Home - Adiscon LogAnalyzer





[root@localhost ~]# dnf install -y php
[root@localhost ~]# dnf install -y wget
[root@localhost ~]# dnf install -y tar

[root@localhost ~]# wget http://download.adiscon.com/loganalyzer/loganalyzer-4.1.13.tar.gz -P /tmp
[root@localhost ~]# tar -xzvf /tmp/loganalyzer-4.1.13.tar.gz -C /tmp

[root@localhost ~]# mkdir /var/www/html/loganalyzer
[root@localhost ~]# cp -r /tmp/loganalyzer-4.1.13/src/* /var/www/html/loganalyzer/
[root@localhost ~]# cp /tmp/loganalyzer-4.1.13/contrib/configure.sh /var/www/html/loganalyzer/
[root@localhost ~]# cd /var/www/html/loganalyzer
[root@localhost ~]# ls
[root@localhost ~]# cat configure.sh
[root@localhost ~]# echo $SHELL
[root@localhost ~]# bash configure.sh
[root@localhost ~]# cat config.php
[root@localhost ~]# chcon -h -t httpd_sys_script_rw_t config.php



@index.php 추가

[root@localhost loganalyzer]# vi /etc/httpd/conf/httpd.conf

DirectoryIndex index.php 추가하기

[root@localhost loganalyzer]# systemctl restart httpd

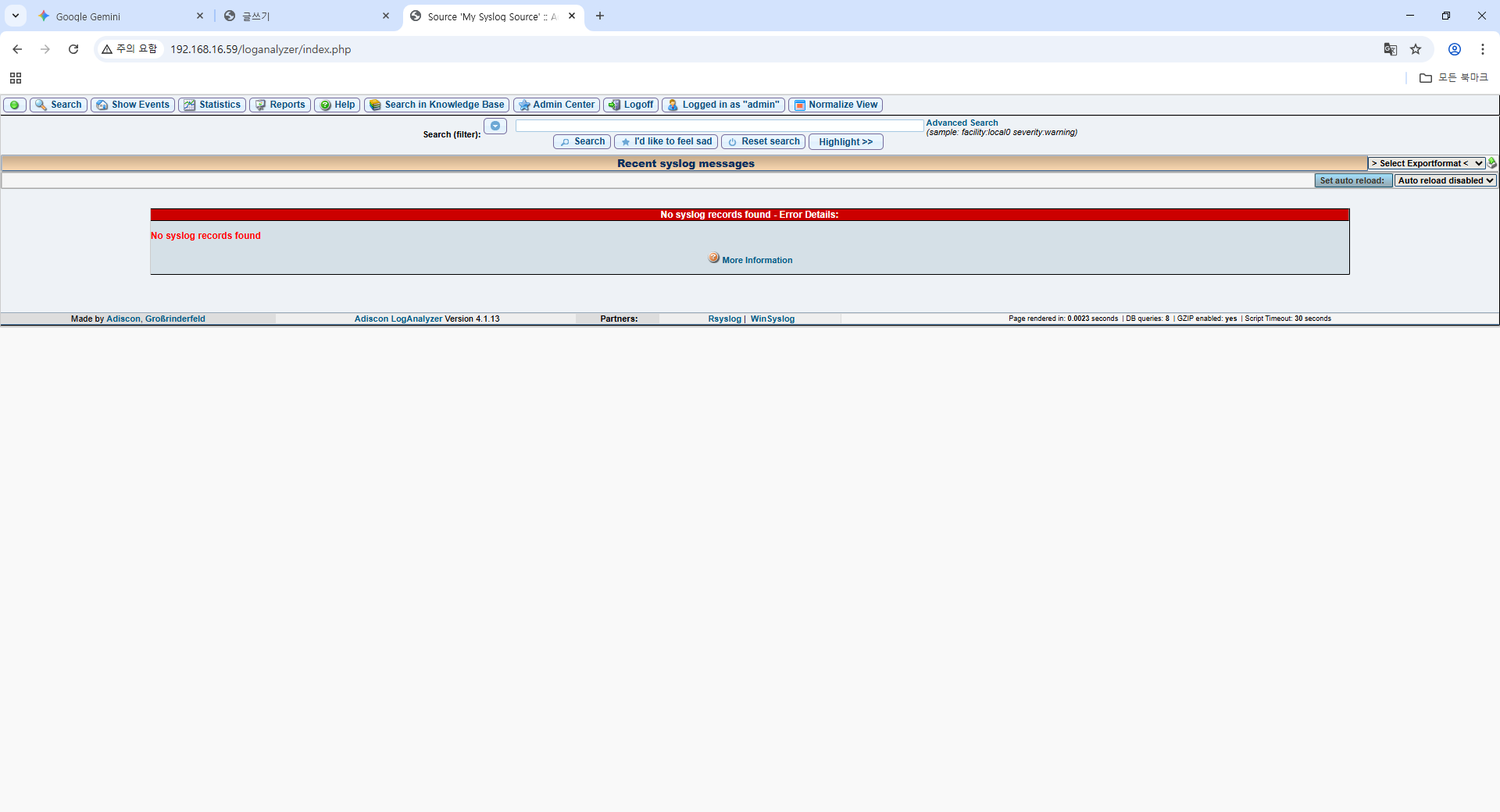

192.168.16.59/loganalyzer/ 접속
Installing LogAnalyzer Version 4.1.13

Step3.
Enable User Database : yes
localhost
3306
Syslog
SystemEvents
rsyslog
rsyslog
